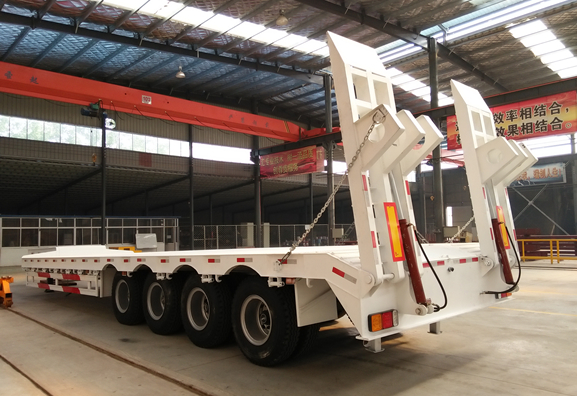

4 Axle Low bed Trailer With Hydraulic Ramp

Product Features :
Tare Weight: 12.5 tons
Max Payload:70 tons
Mechanical suspension or air suspension optional

Start Consulting

Product details

Body/Chassis:

Main chassis: Q345
Tare Weight: 12.5 tons
Max Payload:70 tons

Main Beam: Q345B
Height:500mm
Top Flange:20mm
Middle Plate:12mm
Bottom Flange:20mm

Floor:
4mm checked plate

Axle:
4 axle*16ton
King-pin
3.5 inch(90mm)

Landing legs:
Lift capacity 28 ton

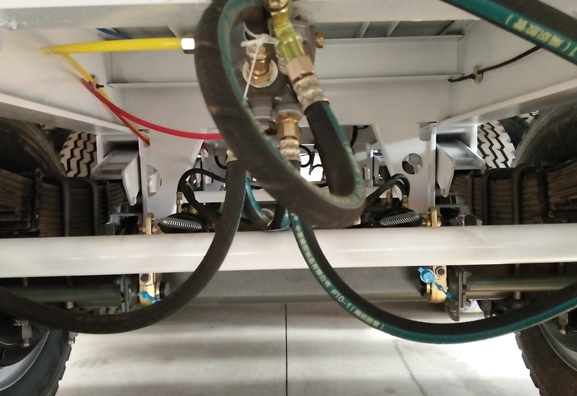

Brake System
8 double spring brake chamber

Suspension
Mechanical suspension

Dimensions:
Total length: 15000mm
Total width:3000mm
Total Height:1750mm
Work Platform size:11000x3000x1200mm

Tires:
11.00R20 18PR

Rim:
8.0-20*17pcs

RAMP:
Mechanical ramp
Inclination angle < 25°

Standard Accesspries:
Spare tire carrier*1
LED light

Electricity
Receptacle: 7 ways(7wire harness)and quick change type
Voltage: 24v
