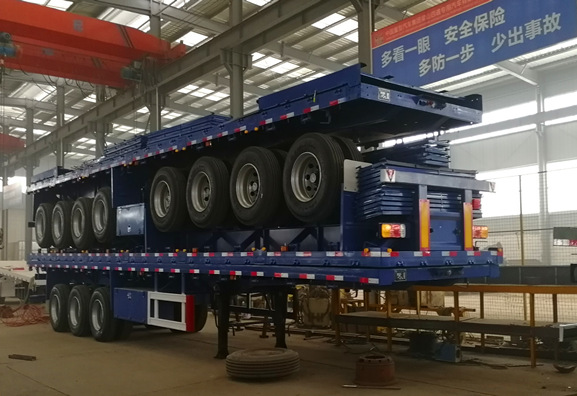

4 Axle Air Suspension Flatbed Trailer To African

Product Features :

Start Consulting

Product details

Body/Chassis:

Main chassis: Steel
Tare Weight: 8.0tons
Max Payload: 60 tons

Main Beam: Q345B
Height:500mm
Top Flange:14mm
Middle Plate:8mm
Bottom Flange:18mm

Axle:
4 axle*13ton

King-pin
3.5 inch(90mm)

Landing legs:
Lift capacity 28 ton

Brake System
8 double brake chamber

Suspension
front axle air suspension+3 axle leaf spring suspension

Dimensions:
Total length: 13000mm
Total width 2500mm
Total Height: 1600mm

Tires:
315/80R22.5*17pcs

Rim:
9.0-22.5*17pcs

Standard Accesspries:
Spare tire carrier*1
LED light

Electricity
Receptacle: 7 ways(7wire harness)and quick change type
Voltage: 24v
